Hydraulic Deep Draw Press Machines
Robust hydraulic presses engineered for deep-drawn components.
Hydraulic Deep Draw Press Machines
Overview
Robust four-pillar and H-frame hydraulic presses purpose-built for deep drawing, forming, and blanking of sheet metal. Designed in-house for long duty cycles and consistent stroke accuracy.
Key Features
- Capacity: as per component requirement
- PLC-based control with HMI
- Hardened, ground columns and platens
- Energy-efficient power pack with cooling
- Adjustable stroke, speed and dwell
Applications
- Stainless steel utensils & kitchenware
- Automotive panels and brackets
- Pressure vessels and shells
- Lighting reflectors and housings
Machine Highlights
Why production teams choose this hydraulic platform
Built for Long Duty Cycles
Heavy-section welded frame stress-relieved to deliver consistent performance on hydraulic deep draw applications.
Precision Stroke Control
Closed-loop hydraulics deliver consistent depth and dwell — critical for repeatable parts.
In-House Try-Out
Tooling validated on our own presses before shipment, reducing your commissioning time.
Energy-Efficient Power Pack
Optimized pump sizing and oil cooling cut idle losses and keep operating temperature stable.
Technical Specifications
Engineered to your spec sheet
Standard ranges shown below. Every machine is configurable — share your part drawing or process target and our engineers will respond with a tailored proposal.
Request a Quote| Press Capacity | As per component requirement |
| Frame Type | Four-Pillar / H-Frame / C-Frame |
| Daylight (max) | As per requirement |
| Stroke Length | As per requirement |
| Working Pressure | Upto 350 bar |
| Ram Speed | Approach / Press / Return — adjustable |
| Control System | PLC + HMI touchscreen |
| Power Supply | 415 V, 3-Phase, 50 Hz |
| Safety | Two-hand operation, light curtains, E-stop |
Machine Types We Manufacture
Choose the configuration that fits your line
We build 4 variants under this product family — each engineered for a specific application profile.

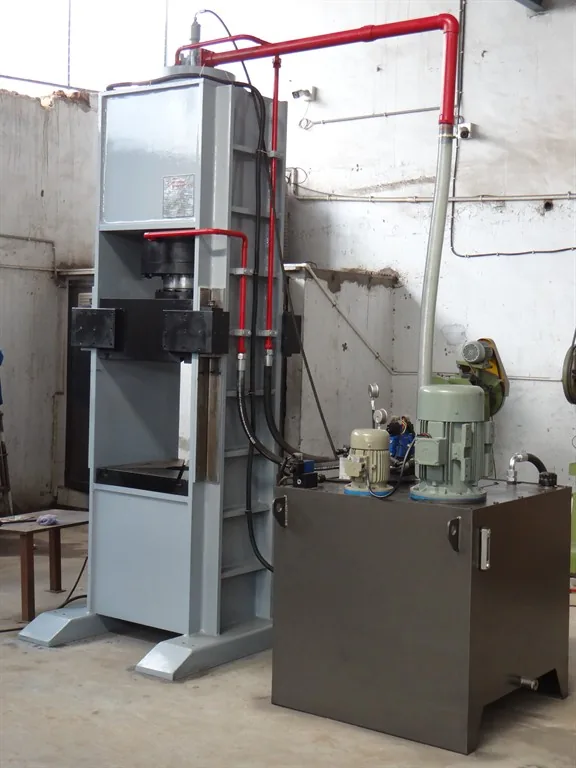

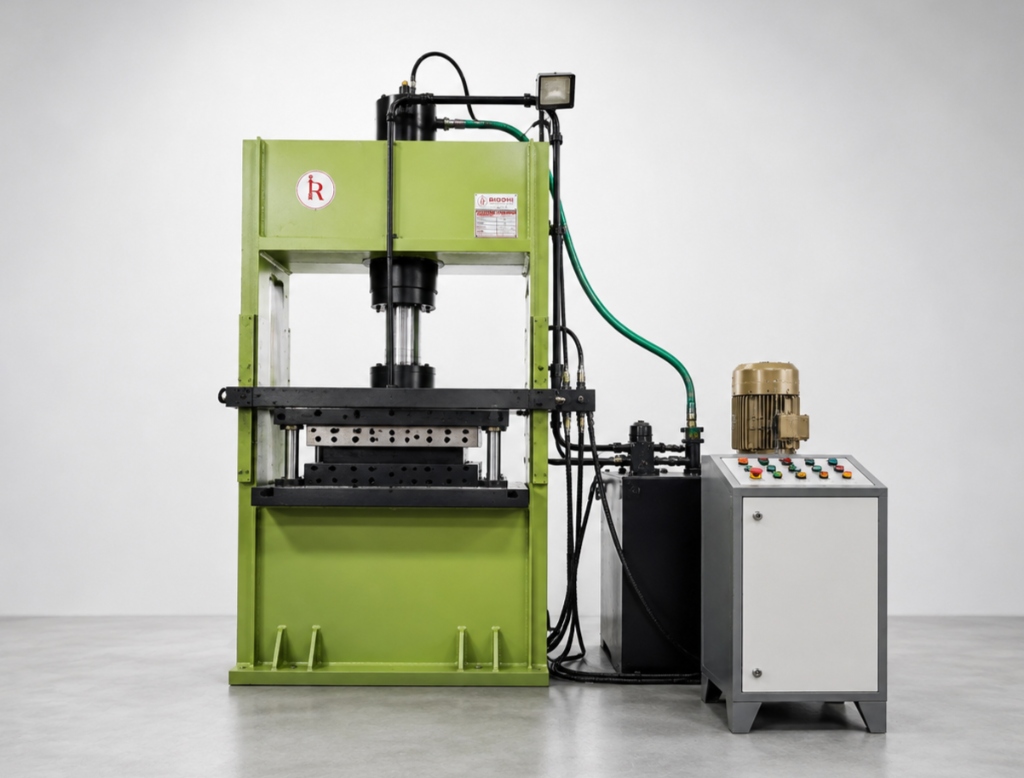

H-Type Hydraulic Press
Rigid H-frame press for symmetric deep drawing, embossing, trimming and forming.
View Details

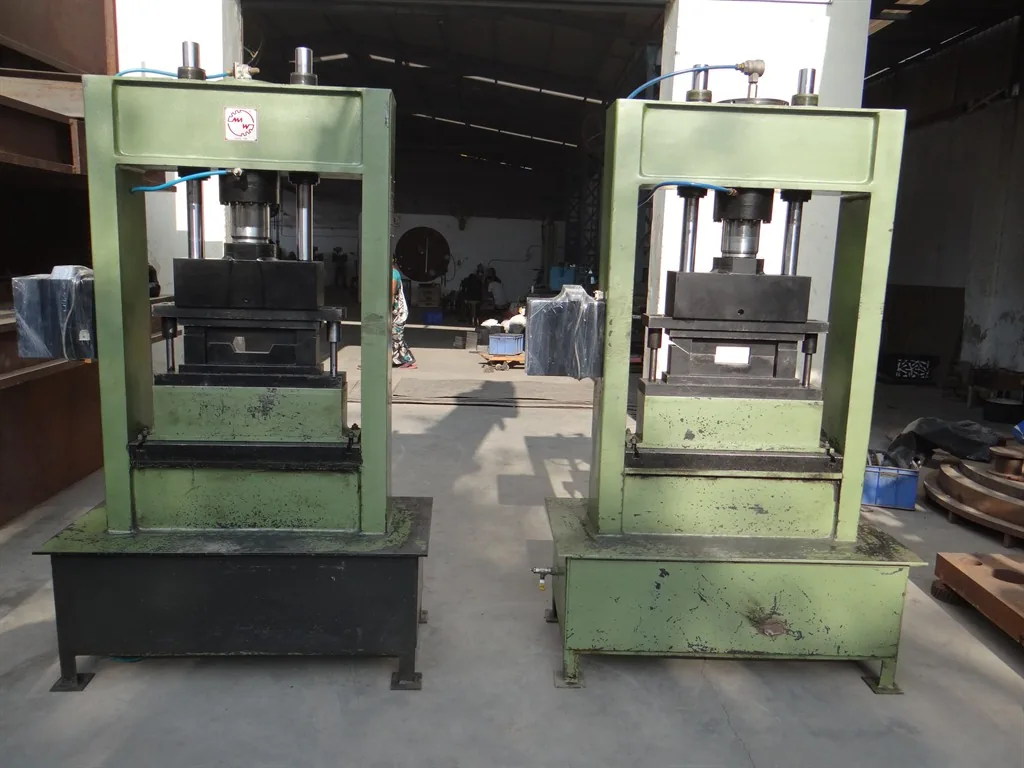

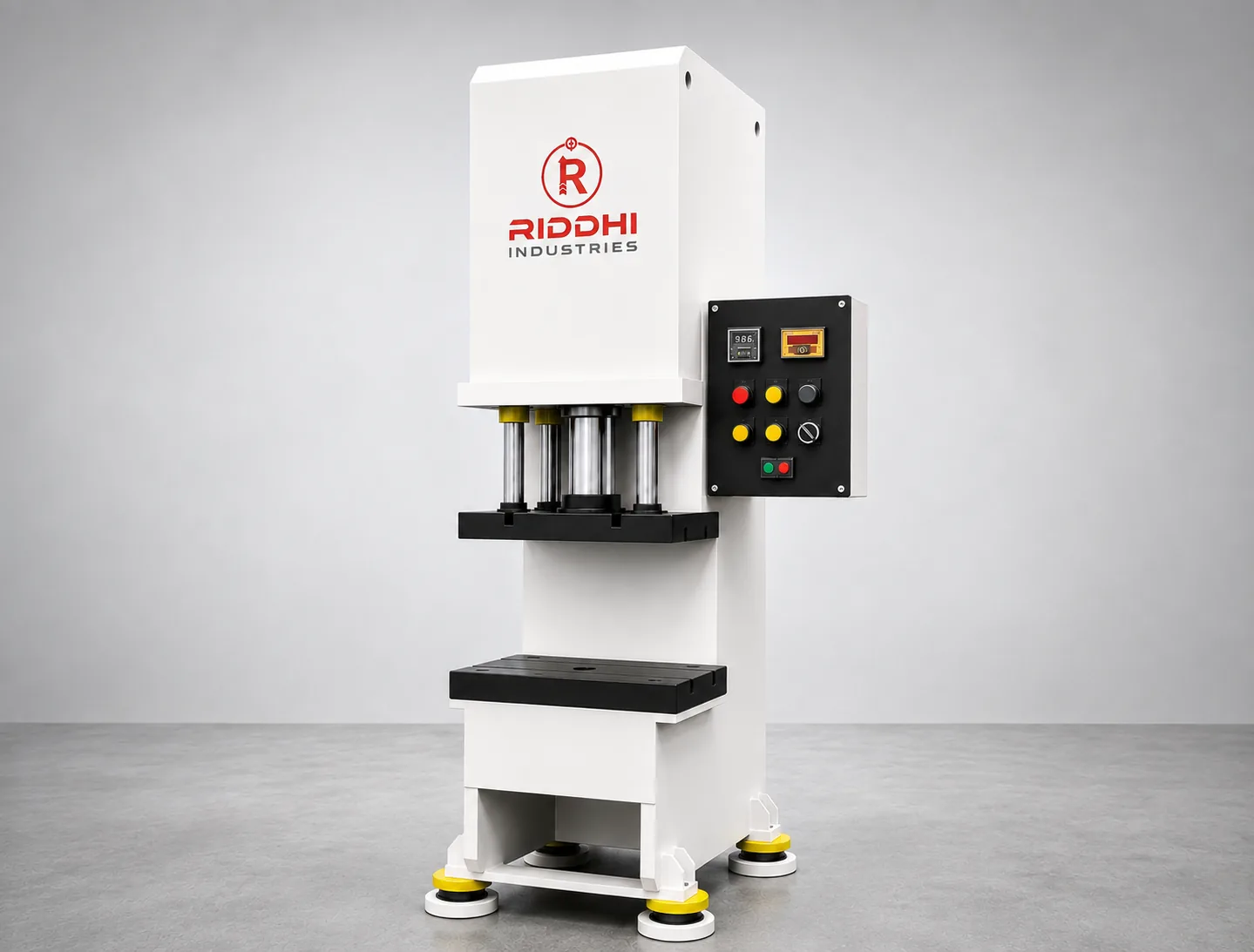

C-Type Hydraulic Press
Open-front C-frame press for quick loading and small parts.
View Details

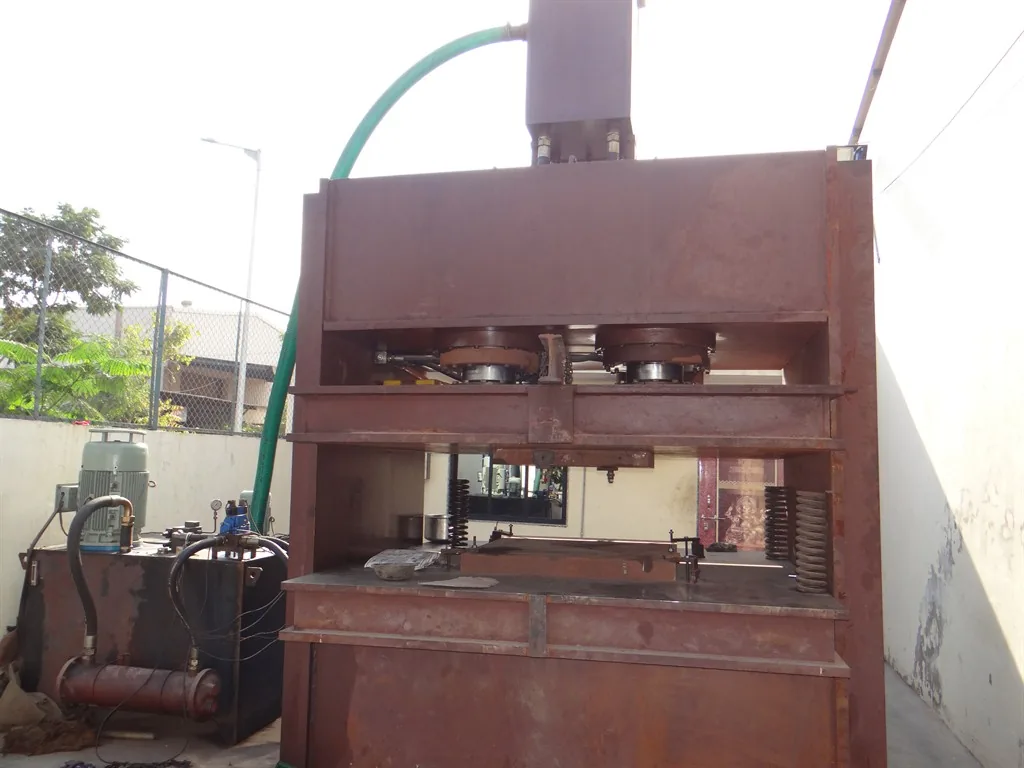

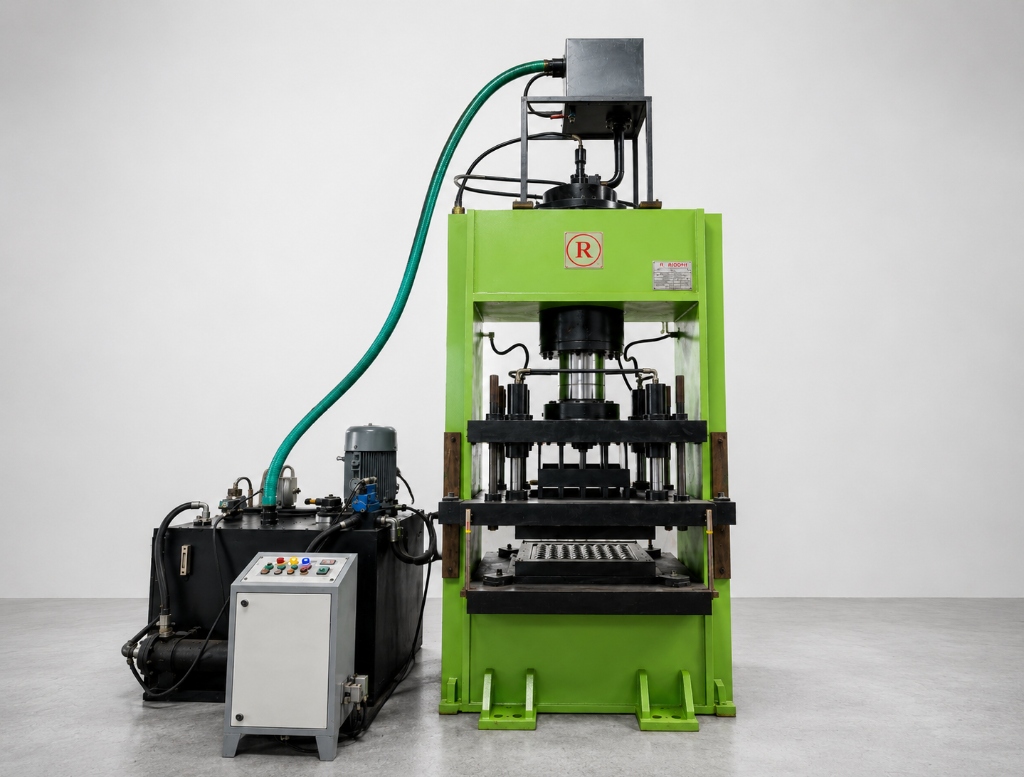

Deep Draw Hydraulic Press
Precision deep-drawing press for cups, shells and vessels.
View Details

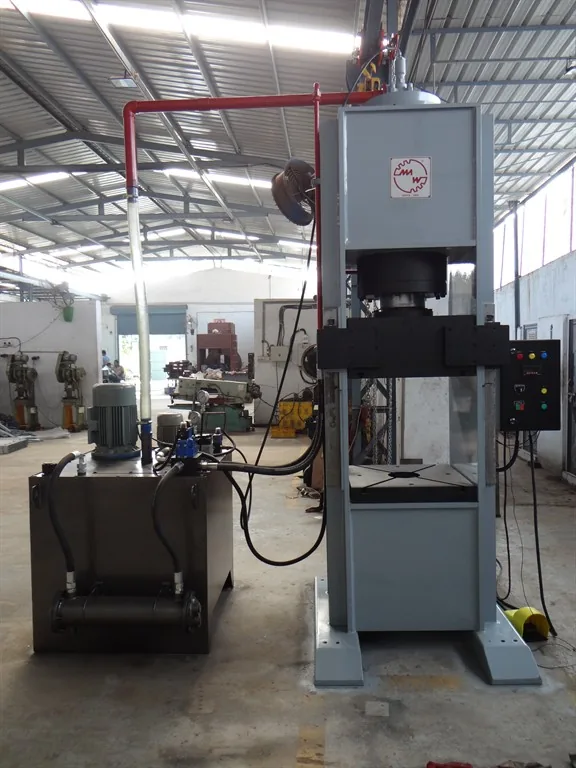

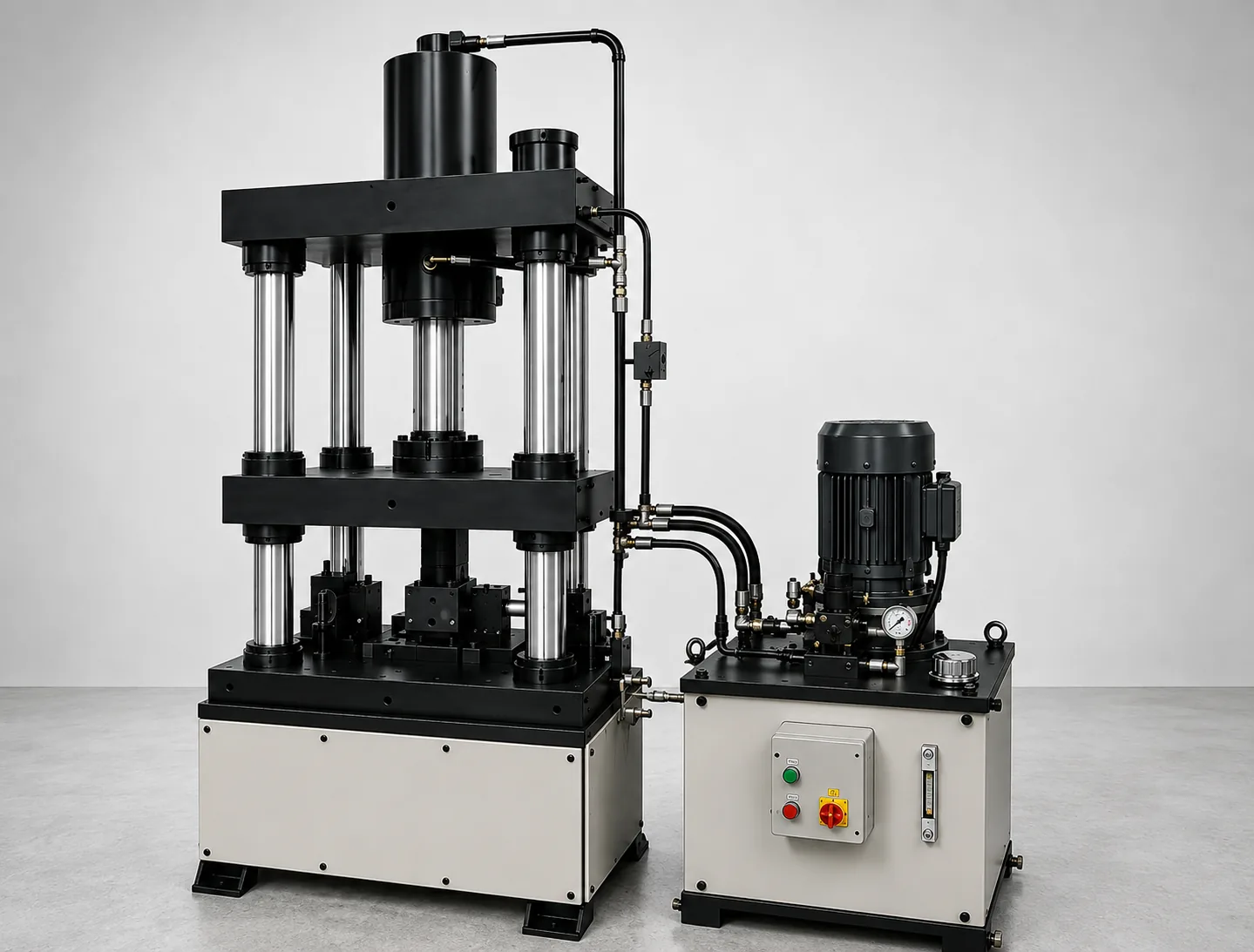

Four-Post Hydraulic Press
Four-pillar press for large platen and symmetric loading.
View DetailsUp Next
Sheet Metal SPM Machines
Ready to discuss your Hydraulic Deep requirement?
Share your application — we'll come back with a tailored proposal within one business day.
